Safety Needles

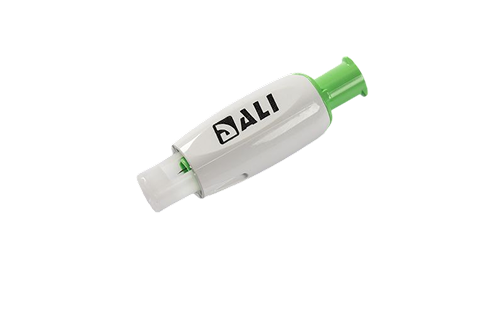

SAN-L

Automatic Safety Needle for Luer-lock Syringes

Key Features & Benefits

For Patients, Caregivers & Healthcare Professionals

Automatic needle insertion
Automatic insertion reduces technical errors, lowers the fear of “doing it wrong,” and gives users the confidence to self-inject independently.

Passive sharps protection
After use, the needle is shielded automatically, protecting patients and caregivers from needlestick injuries.

Hidden needle before, during, and after use
The needle is hidden at every stage, helping users feel calmer and more comfortable with self-injection.

Advanced manual injection
Attaching the SAN-L needle upgrades a familiar syringe, while enabling users to manually control injection speed and create a less painful, easier, and more confident self-injection experience.

Compact size for home use
The device is small and easy to handle, aiming to reduce needle anxiety and support adherence to self injection.

Audible confirmation
An audible click confirms successful needle insertion.

01

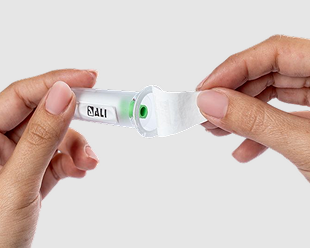

Prepare & Attach

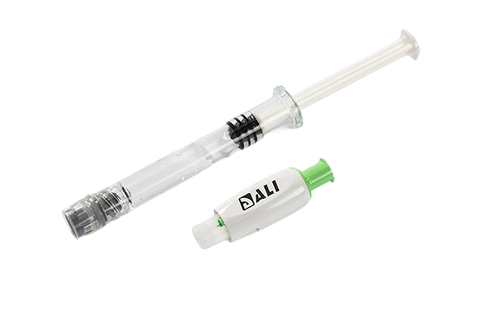

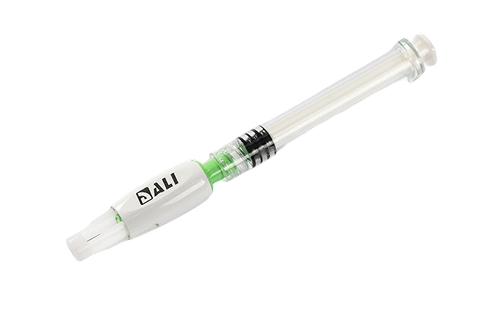

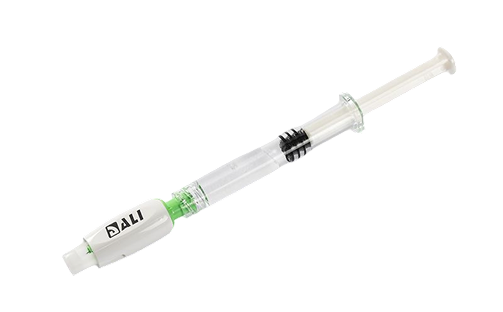

Open the sterile package, attach SAN-L to a standard PFS ISO Luer-lock syringe
02

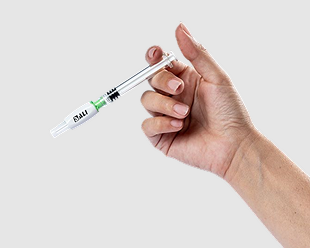

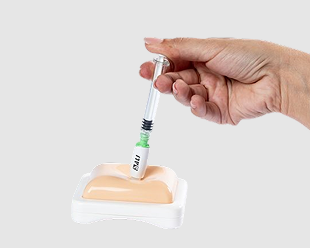

Insert
Push the SAN-L against the skin until there is an audible click. The needle is automatically inserted.
03

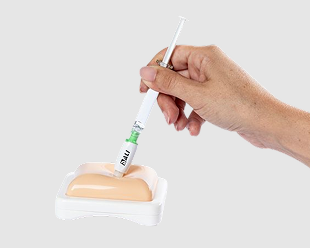

Inject
Press down the syringe plunger to manually inject the drug.
04
Remove
Withdraw the device from the skin and discard in a sharps container.

Technical Specifications

Description Details
Primary container Luer-lock syringes (prefilled syringes, standard syringes, etc.)
Injection route Subcutaneous (SC)
Needle size 29G ETW x 7mm
Materials High-quality medical-grade materials

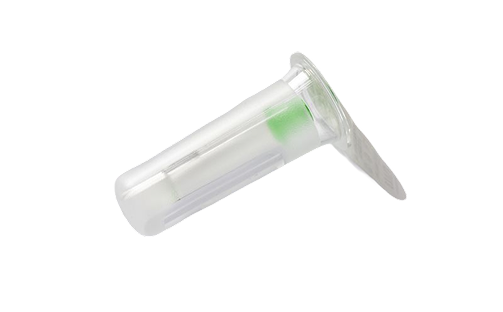

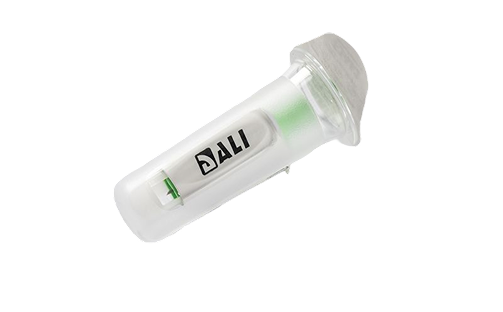

Sterility & packaging Supplied sterile for single use; sterilized with ethylene oxide (EO); individually packaged in sterile barrier
Viscosity Compatible with a wide range of formulation viscosities
Customization options Needle gauge & length, syringe-connection interface, branding – logo, colors, and labeling

Customize Options

Tailored to your therapy, formulation, and device requirements
Our team will customize your product to ensure complete compatibility, functionality, and usability.

Category Customizable Options
Needle configuration Needle gauge and length ranges, with optional bevel and Wall thickness variations to support different therapies and drug viscosities
Injection route Intramuscular (configuration dependent)
Syringe-connection customization Adaptation to non-standard or proprietary syringe connection type
Ergonomics Customizable housing geometry and grip features to support user operation
Ergonomics
Branding & packaging configuration
Custom color-coding, logo placement, and partner-specific branding

Contact Us

Talk to us about your drug delivery device needs

    DALIMED has been developing drug delivery devices from concept to commercialization since 2003, serving pharmaceutical and medical device companies.

    Our injectable solutions are designed to improve patient compliance with biologic, biosimilar, and generic therapies, offering greater ease, comfort, and enabling simple self-administration. With expertise across the full product lifecycle,
we provide both market-ready devices and customizable solutions tailored to specific needs-covering everything from design and development to verification, validation, and compliance with all relevant standards and regulations.
