Safety Needles

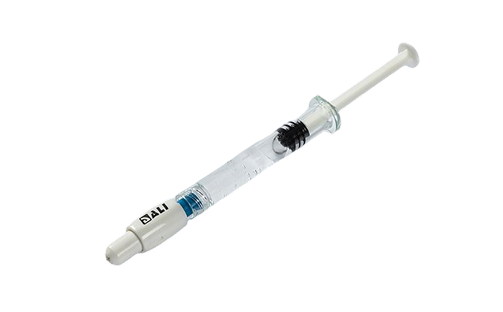

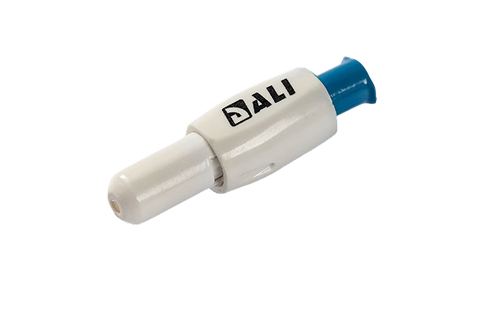

SAN-Light

Passive Safety Needle for Luer-lock Syringes

SAN-Light is a passive safety needle compatible with any Luer-lock syringe. It is a single-use, sterile hypodermic needle intended for subcutaneous or intramuscular drug targeted to be administered by caregivers or healthcare professionals. The device provides intuitive, manual needle insertion and passive needlestick protection without requiring modifications to the primary container.
The SAN-Light equips a Luer-lock syringe with these unique features, while enabling the user to control injection speed manually by pressing the plunger rod. Before the injection, only the needle tip is exposed, minimizing needle visibility, which helps in lower patient anxiety and reduces perceived pain, and creates a calmer injection experience for the patinets, users, and healthcare professionals. Calmer injections encourage patients to return for follow-up treatments, supporting long-term adherence.

Key Features & Benefits

For healthcare professionals and caregivers

Passive needle protection
Fully passive needle shielding activates automatically after injection, helping prevent needlestick injuries and ensuring safe handling.

Only the needle tip is exposed before use
Only the needle tip is exposed to minimize needle phobia and support priming and accurate positioning when required. This design helps reduce needle anxiety, which can help lower perceived pain, and creates a calmer injection experience.

Intuitive operation
Designed for easy adoption with minimal training. Simply attach, inject, and remove. The safety shield locks automatically upon withdrawal.

Compact design
The small form factor makes the SAN-Light easy to handle and less threatening, helping reduce needle anxiety and support adherence to self-injection.

For pharmaceutical companies

Standard Luer-lock compatibility
Attaches to any Luer-lock syringe, supporting easy integration with existing prefilled syringes

Proven device
A customized SAN-Light configuration is already CE-marked, FDA-approved, and commercialized.

Simplify regulatory pathways
SAN-Light is external to the primary container, simplifying the regulatory pathway

Customizable
Customizable to meet drug pharma requirements and users’ needs.

01

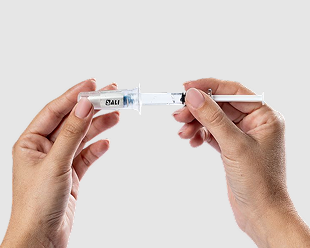

Attach
Connect the SAN-Light to a standard Luer-lock syringe containing the drug. Remove cap.
02

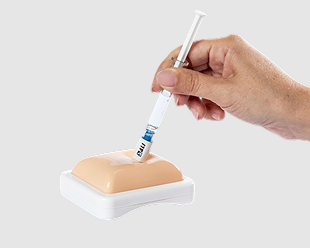

Insert
Push the SAN-Light against the skin until the needle guard fully retracts and stops.
03
Inject
Push the syringe plunger to manually deliver the medication using standard injection technique.
04
Remove & Discard
Withdraw the device from the skin. The safety shield will automatically lock over the needle. Discard in a sharps container.

Technical Specifications

Description Details
Primary container Luer-lock syringes (prefilled syringes, standard syringes, etc.)
Injection route Subcutaneous (SC)
Needle size 29G ETW x 7mm
Materials Materials High-quality medical-grade materials
Sterility & packaging Sterility & packaging Supplied sterile for single use; sterilized with ethylene oxide (EO); individually packaged in sterile barrier
Viscosity Viscosity Compatible with a wide range of formulation viscosities
Customization options Needle gauge & length, syringe-connection interface, branding – logo, colors, and labeling

Customize Options

Tailored to your therapy, formulation, and device requirements
Our team will customize your product to ensure complete compatibility, functionality, and usability.

Category Category
Needle configuration Needle gauge and length ranges, with optional bevel and wall thickness variations to support different therapies and drug viscosities, tip-exposed or fully concealed
Injection route Intramuscular (configuration dependent)
Syringe-connection customization Adaptation to non-standard or proprietary syringe connection type
Ergonomics Customizable housing geometry and grip features to support user operation
Branding & packaging configuration Custom color-coding, logo placement, and partner-specific branding

Contact Us

Talk to us about your drug delivery device needs

    DALIMED has been developing drug delivery devices from concept to commercialization since 2003, serving pharmaceutical and medical device companies.

    Our injectable solutions are designed to improve patient compliance with biologic, biosimilar, and generic therapies, offering greater ease, comfort, and enabling simple self-administration. With expertise across the full product lifecycle,
we provide both market-ready devices and customizable solutions tailored to specific needs-covering everything from design and development to verification, validation, and compliance with all relevant standards and regulations.
